LAGE-L011

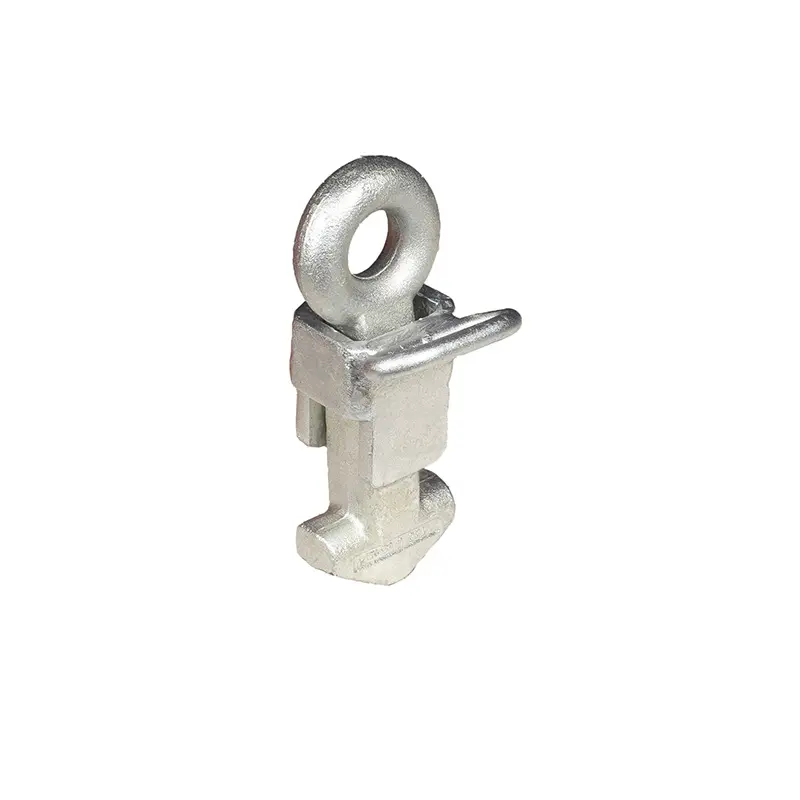

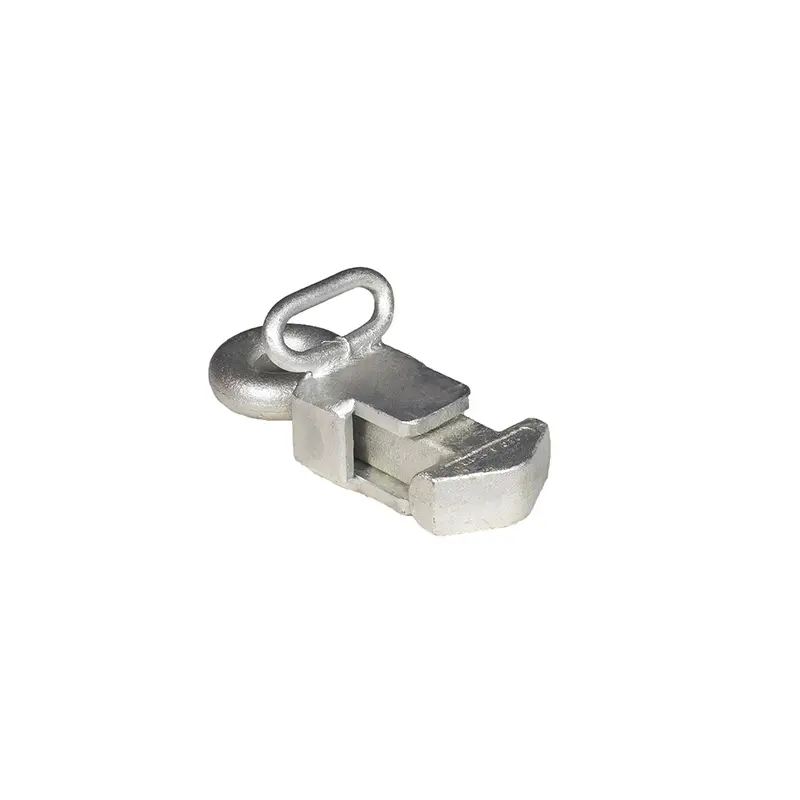

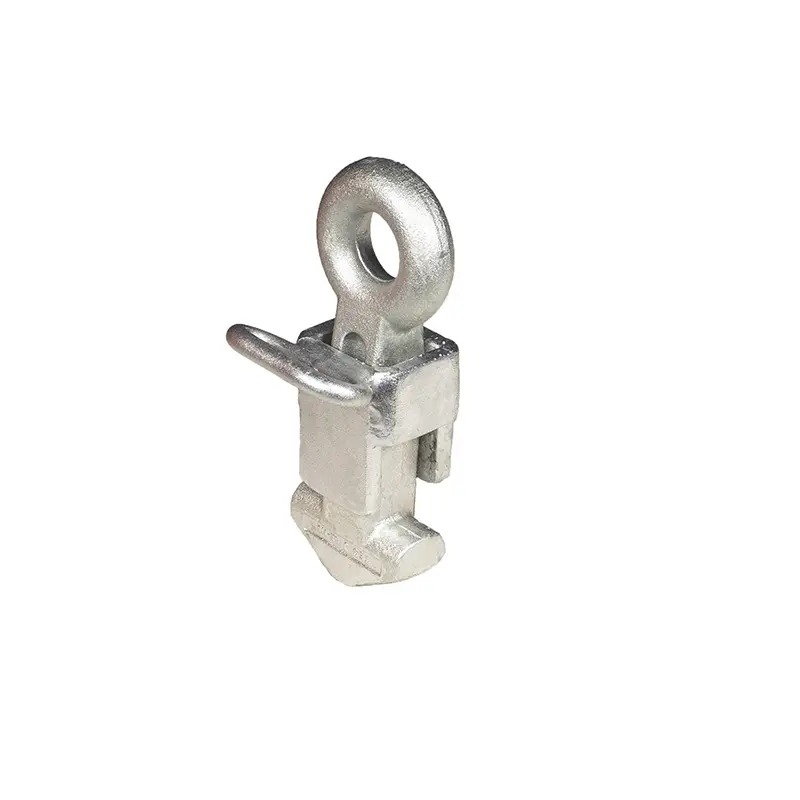

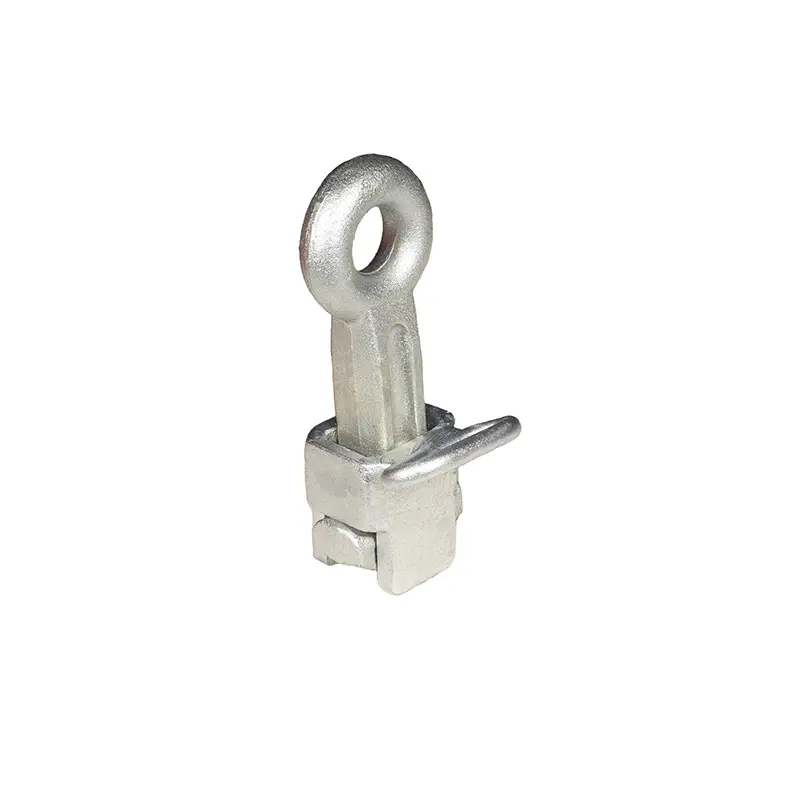

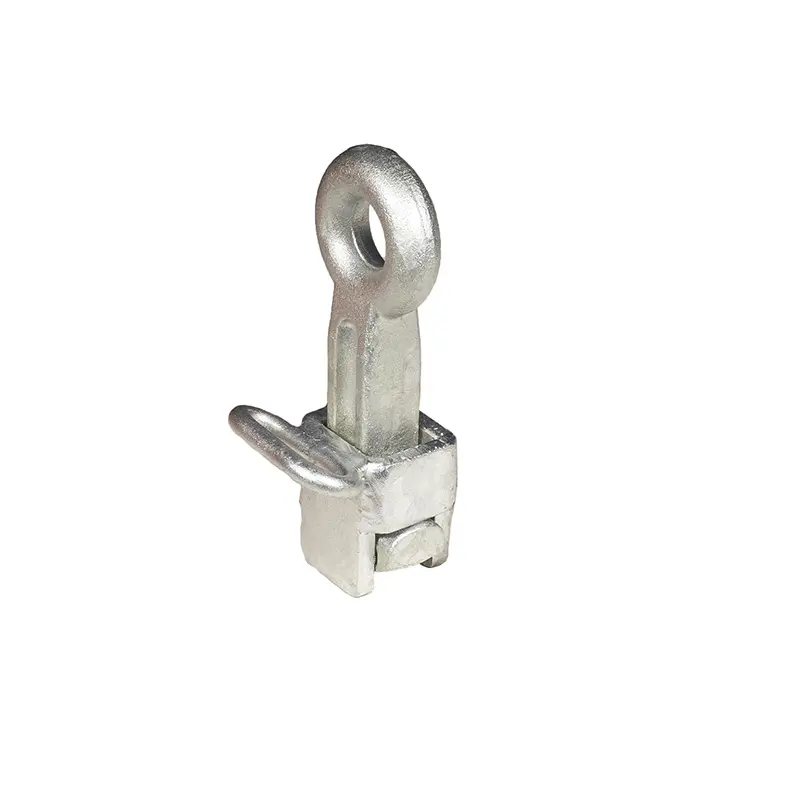

Lifting lug for vertical lifting of containers which fits into the top container corners ISO holes. It is manufactured from high tensile steel and has a breaking load of 30t. This model is used for loading of empty containers in case that the slings will be with angle less than 90 degrees with respect to the container surface, or, if used with loaded containers, the lifting must be at 90-degree angle with respect to the container Surface.
Capacity
- Material: High Tensile Steel
- Weight: 5.75 kg
- SWL: 150 kN
- BL: 300 kN
Download Technical Sheet
Made out of High Quality Steel, SALADA is manufacturing Shipping Contianer Lashing Equpipments with High Quality.
Technical
Details
&
Drawing
