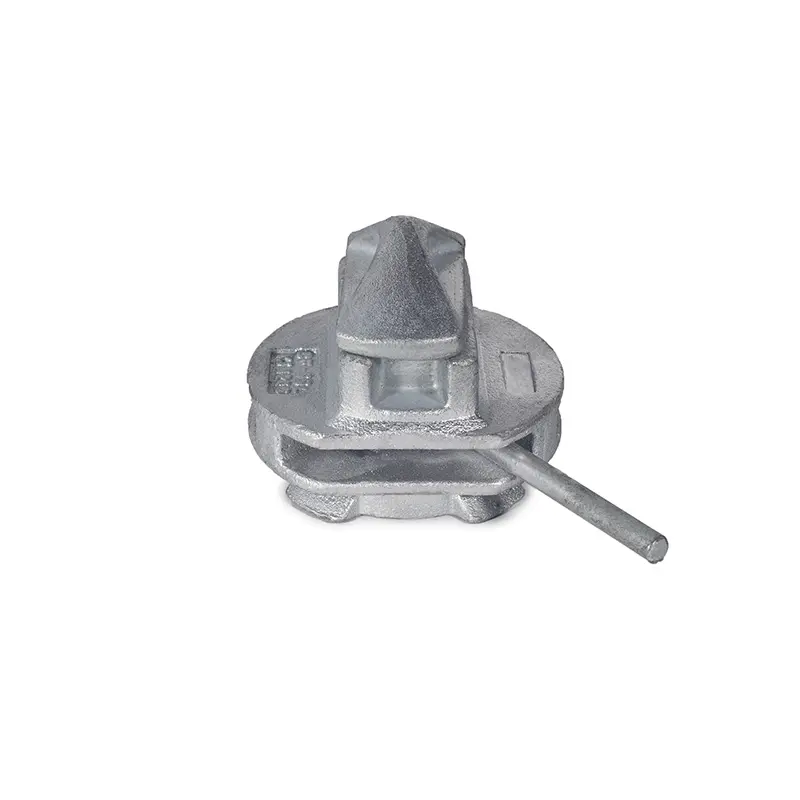

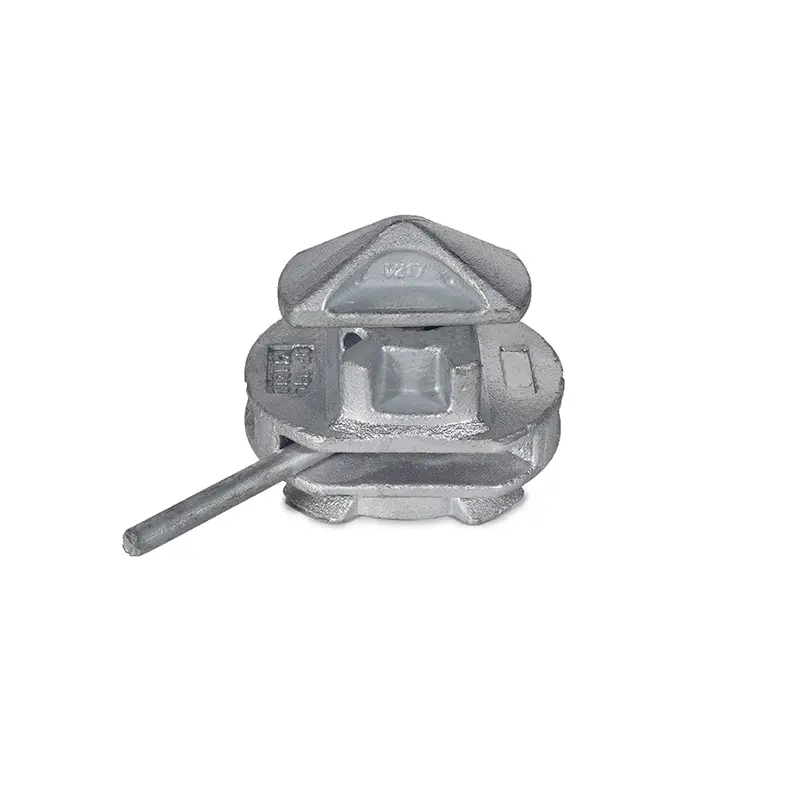

LCB-02L10C
To be used in combination with a raised breech base foundation or a flush socket to secure the corner castings of containers on board of a vessel. No additional space around the foundation required. Left and right locking available. Do not mix left and right locking types in a vessel to avoid confusion as to if open or locked.
Capacity
- Material: Ductile Iron (housing)
- Drop forged (cone)
- Weight: 4.8 kg
- SWL Tension: 250 kN
- SWL Shear: 210 kN
- BL Tension: 500 kN
- BL Shear: 420 kN
Download Technical Sheet
Made out of High Quality Steel, SALADA is manufacturing Shipping Contianer Lashing Equpipments with High Quality.
Technical
Details
&
Drawing
