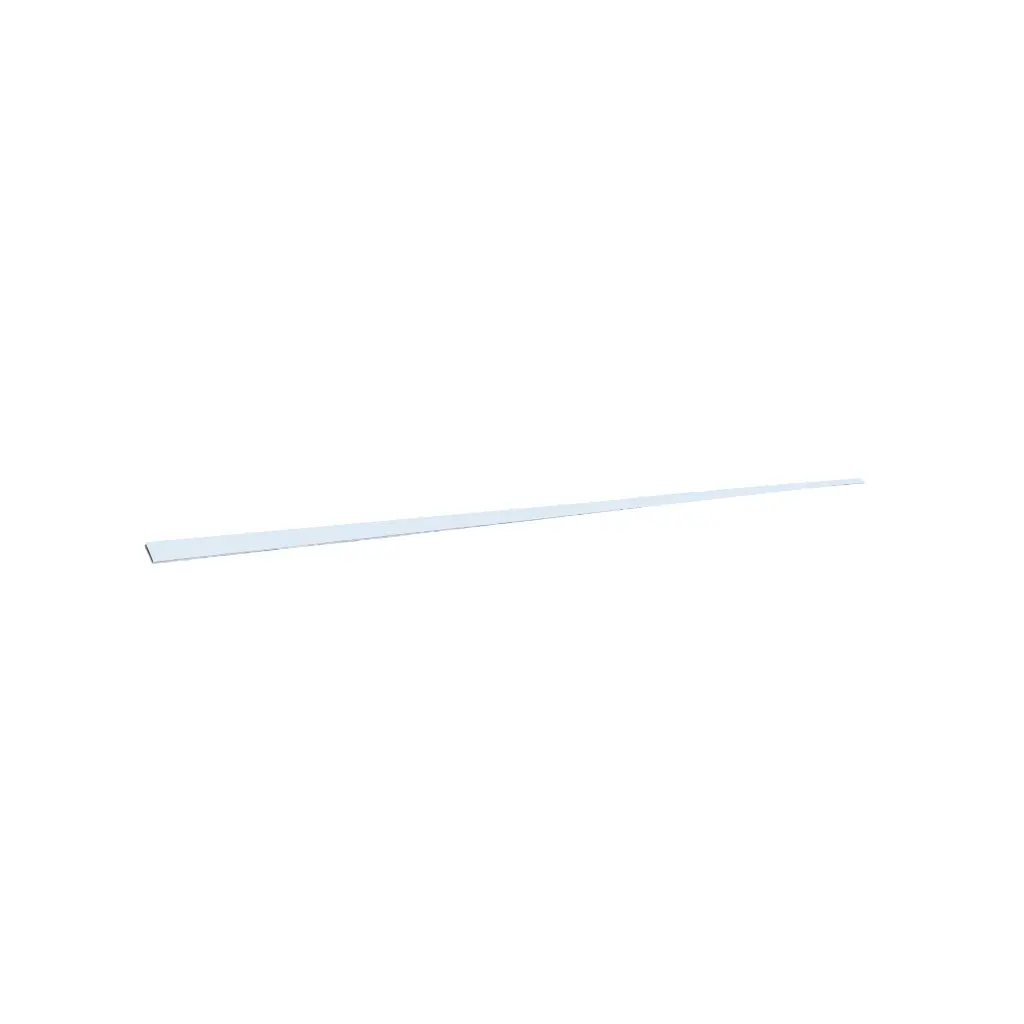

TSR-F5014-6
The top side rail flat bar is a critical structural component of an ISO shipping container, forming the upper horizontal edge of the side walls. It runs along the length of the container, connecting the front and rear corner postsand supporting the roof panel. The top side rail provides structural rigidity, facilitates stacking (via corner castings per ISO 1161), and resists torsional forces during transport. The term "flat bar" suggests a non-tubular or non-hollow profile, and the 6m length (5702 mm) indicates it’s designed for a 20ft standard container (20ft containers are ~6.058 m long, with the rail slightly shorter to account for corner castings).
Technical Details
Dimension: 14x50x5702 mm
Weight: 32.5 kg
Download Technical Sheet
Crafted from Superior Quality Steel, SALADA is dedicated to supplying an extensive range of High-Quality Spare Parts specifically designed for Shipping Containers, ensuring durability and reliability in every component.

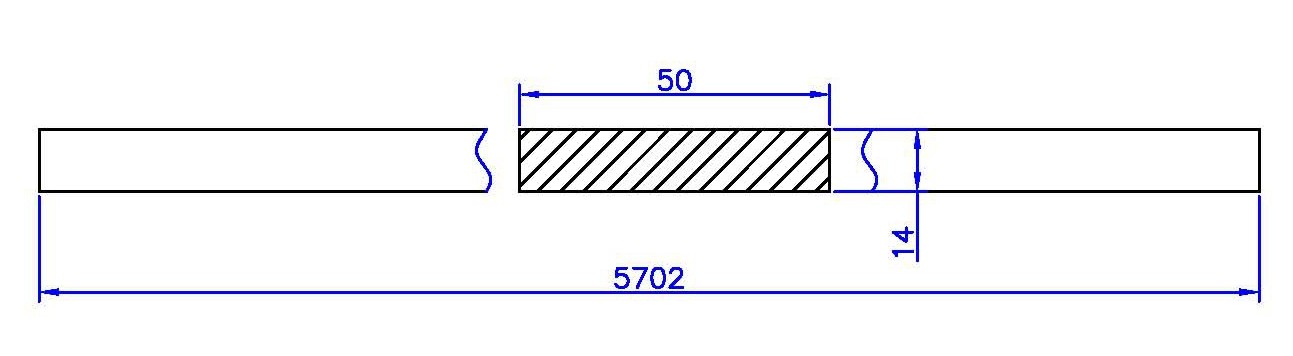

Technical Details & Drawing
Description

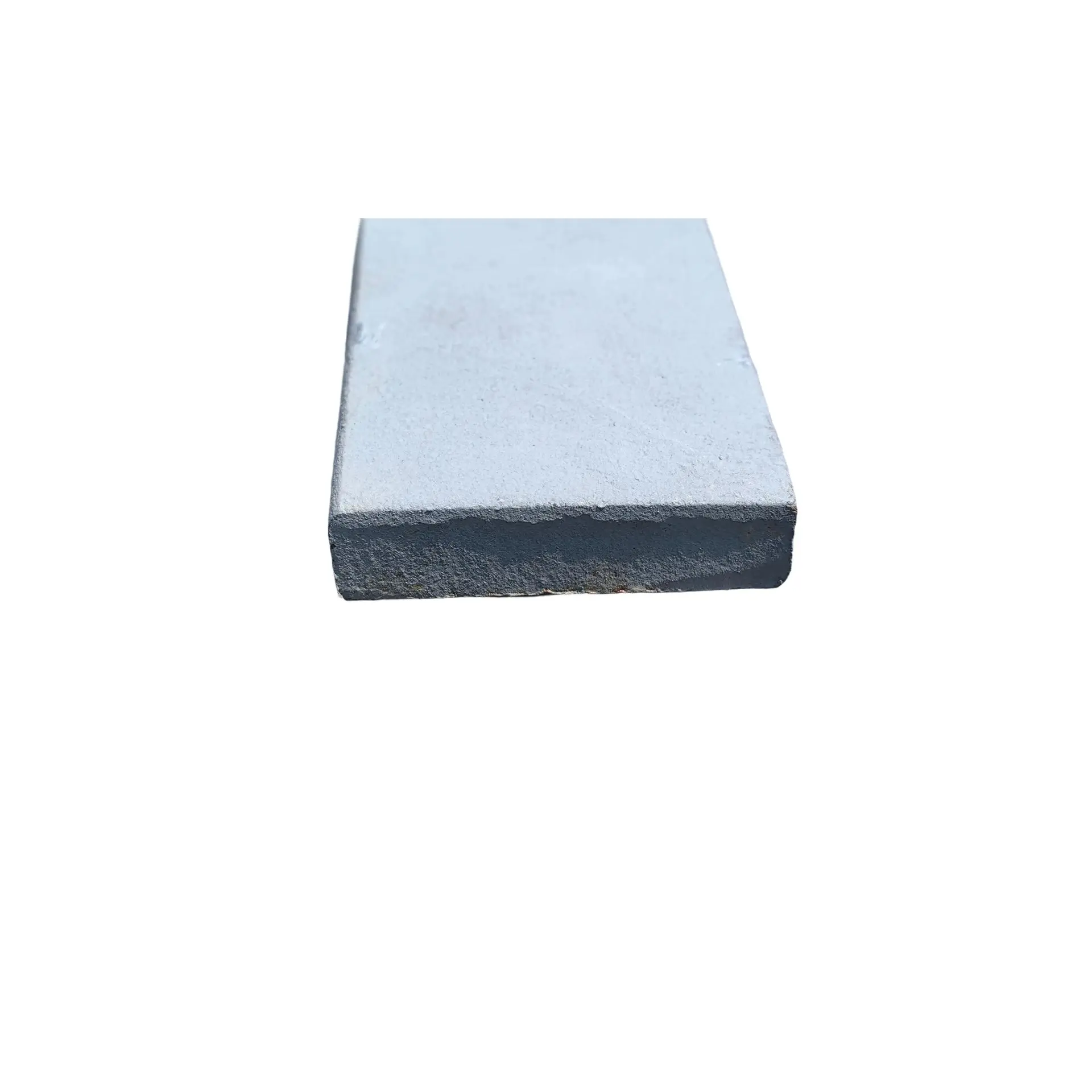

Dimension Breakdown
- 14 mm: Thickness of the corten steel, indicating a robust component for structural support (thicker than side panels at 1.6 mm or outer corner posts at 6 mm).
- 50 mm: Width of the flat bar, providing a wide surface for welding to the roof and side panels (e.g., side panel patch 1Corr: 1.6 x 278 x 150 mm).
- 5702 mm: Length, suitable for a 20ft container (slightly less than the full 6.058 m to fit between corner castings).
Key Features and Specifications
- Material: Corten steel (A588 or similar), hot-dip galvanized or painted for corrosion resistance.
- Function:
- Forms the upper frame of the side walls, connecting to front and rear corner posts.
- Supports the roof panel and transfers stacking loads to corner castings (up to 9-high, ~200 tons).
- Enhances container rigidity against twisting or bending during lifting or transport.
