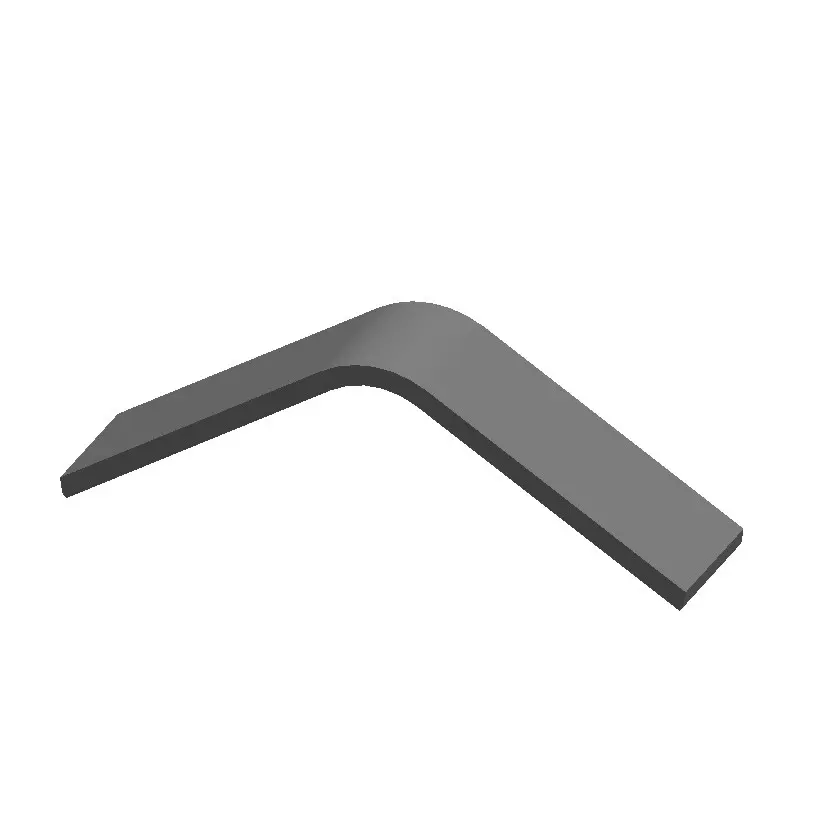

V300
The "V" Channel associated with an ISO shipping container typically denotes a structural element characterized by a V or U shape in its cross-section. This component is utilized to strengthen or repair certain sections of the container, including the rear end frame, side walls, or door assembly. Considering your previous inquiries regarding the door sill, hinge blade (welding type with nylon bush), rear corner posts (both inner and outer), and side panel patch, the "V" Channel is probably a reinforcing or sealing part linked to these elements, potentially found in the door frame, roof, or floor structure. The dimensions of 10 x 95 x 300 (presumably in millimeters) indicate a specific profile, generally constructed from corten steel (a weather-resistant alloy) to align with standard container manufacturing practices.
Technical Details
Dimension: 10x95x300mm
Weight: 2.0kg
Download Technical Sheet
Crafted from Superior Quality Steel, SALADA is dedicated to supplying an extensive range of High-Quality Spare Parts specifically designed for Shipping Containers, ensuring durability and reliability in every component.
Technical Details & Drawing
Description
Dimension Breakdown
- 10 mm: Thickness of the corten steel, indicating a heavy-duty component for structural support (thicker than side panels at 1.6 mm or outer corner posts at 6 mm).
- 95 mm: Width or depth of the V-shaped channel’s cross-section, suggesting a narrow, angled profile for fitting into tight spaces or reinforcing edges.
- 300 mm: Length of the channel, indicating a short section, likely used as a patch, brace, or threshold component rather than a full-length structural member like a corner post (e.g., 2353 mm or 2400 mm).
The "V" Channel’s shape and size suggest it could serve as:
- A reinforcing brace for the door sill or rear frame.
- A sealing or alignment channel for the cargo doors, interfacing with the rear corner posts (inner: 12 x 113 x 40 x 2353 mm; outer: 6.0 x 50 x 40 x 232 x 2400 mm) and hinge blades (welding type with nylon bush).
- A repair patch for corrugated side walls or roof, complementing the side panel patch (1.6 x 278 x 150 mm).
